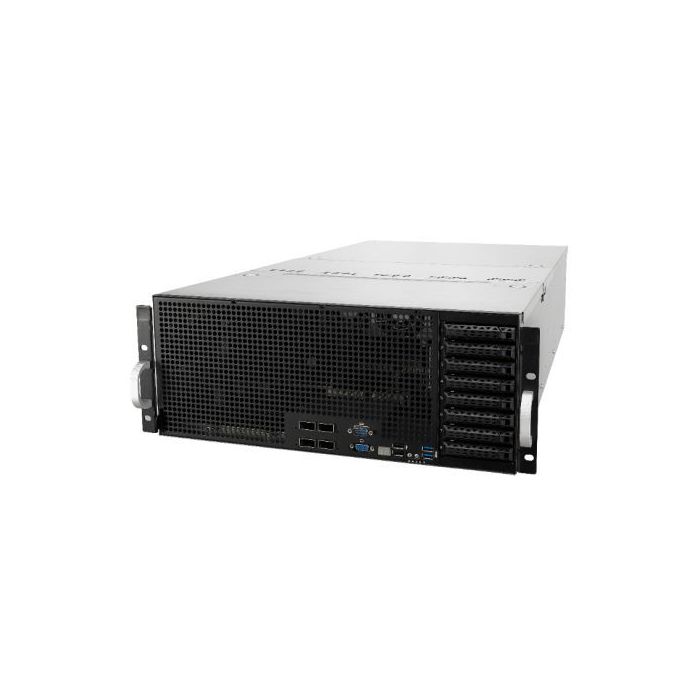

Asus ESC8000 G4 4U High-Density GPU Barebone Server, Intel C621, Dual Socket 3647, Supports 8 GPUs, Dual GB LAN, 8 Bay Hot-Swap, 2+1 1600W Platinum PSU

Name: Asus ESC8000 G4 4U High-Density GPU Barebone Server, Intel C621, Dual Socket 3647, Supports 8 GPUs, Dual GB LAN, 8 Bay Hot-Swap, 2+1 1600W Platinum PSU
Brand: Asus ESC8000 G4 4U High-Density GPU Barebone Server, Intel C621, Dual Socket 3647, Supports 8 GPUs, Dual GB LAN, 8 Bay Hot-Swap, 2+1 1600W Platinum PSU
SKU: SPTECH-SVR-AUESC8000G4
Price: 6622.99 GBP
Availability: OutOfStock

Be the first to review this product

£6,622.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SVR-AUESC8000G4

Asus ESC8000 G4 4U High-Density GPU Barebone Server, Intel C621, Dual Socket 3647, Supports 8 GPUs, Dual GB LAN, 8 Bay Hot-Swap, 2+1 1600W Platinum PSU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: 4U
CPU Socket: Intel 3647
#Hide#No. of CPU Sockets: Dual Socket
Chipset: Intel C621
CPU Support: 2 x Socket
1st and 2nd Gen Xeon Scalable CPUs

Click here for CPU support list
Memory: "24 slots (6-channel per CPU, 12 DIMM per CPU)
Maximum up to 3072GB LRDIMM
DDR4 2933/2666/2400/2133 RDIMM
DDR4 2933/2666/2400/2133 LRDIMM
DDR4 2933/2666/2400/2133 LR-DIMM 3DS
DDR4 Intel Optane DC Persistent Memory

Takes:
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS"
Expansion Slots: "Full-length/height:
8 x PCI-E x16 (Gen3 x16 link), FH, FL
*Single root topology : 8 from CPU1
Dual root topology : 4 from CPU1, 4 from CPU2

Half-length/Low-profile:
Rear:
Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link),LP,HL
(1 from CPU1,1 from CPU2)
or
Single root topology: 1 X PCI-E x16 (Gen3 x16 link),LP,HL
(from CPU1)
Front:
1 x PCI-E x8 (Gen3 x8 link),LP,HL (from CPU2)"
Storage: "SATA Controller:
8 x SATA3 + 2 x M.2 (SATA & PCIe Gen3 x4 22110/2280/2260)
or
6 x SATA3 + 2 x NVMe + 2 x M.2 (SATA & PCIe Gen3 x4 22110/2280/2260)
Intel Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)
Software RAID 0, 1, 5, 10
IntelVROC For Linux/Windows
Software RAID 0/1 "
.: Optional kits Controller (not included):
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
HDD Bays: "8 x Hot-swap 2.5""
(Storage bay 1 & 2 support NVMe/SATA/SAS* drives, Storage bay 3~8 support SATA/SAS* drives. Storage bay location numbers are from top to bottom)

*SAS from optional ASUS PIKE II 3108/3008 cards"
Networking: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphics: Aspeed AST2500 with 64MB VRAM
Front I/O Ports: 2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM port
Rear I/O Ports: 2 x RJ-45 GbE LAN
1 x RJ-45 Mgmt LAN
Switch/LED: Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch/LED
1 x Location switch/LED
1 x HDD Access LED
1 x Message LED

Front Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch/LED
1 x Location switch/LED
1 x HDD Access LED
1 x Message LED
2 x LAN LED
Power Supply: "2+1 Redundant 1600W 80PLUS Platinum Power Supply;
100-127 / 200-240Vac, 12.9 / 9.5A (for each inlet), 47-63Hz, Class I"
OS Support: Windows Server 2019
Windows Server 2016
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Management Solution: ACC
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance: "BSMI, CE, FCC(Class A)"
Dimensions/Weight: 798 x 439 x 175.6 mm
Environment: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% (Non condensing)
Package Weight: 29.0000 kg
Additional Features: See Overview
Warranty: 3 Year Advanced Replacement
#Hide#Memory Slots: 24 Memory Slots
#Hide#Maximum Memory: 3072 GB
#Hide#No. LAN Ports: 2
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	High-density 4U GPU server support 8 GPUs Powered by Intel® Xeon® Scalable Platform High-density GPU server with hybrid computing power ASUS-patented Adaptable Topology design Scalable design for growing workloads Comprehensive IT Infrastructure Management Solution Efficient cooling with hot-swappable redundant fans and dedicated air tunnels Exclusive thermal radar technology for energy efficiency Simplified maintenance and management High-density GPU server with hybrid computing power ESC8000 G4 features a powerful GPU architecture that supports up to eight high-performance NVIDIA® Quadro® or Tesla® GPU cards in a 4U chassis. With so much graphics power, ESC8000 G4 lets you accomplish demanding computing tasks more quickly and with greater efficiency. An optimised internal layout enables ESC8000 G4 to fit a wide variety of graphics cards — including dual-slot GPUs — with active or passive thermal modules. Patented Adaptable Topology design ESC8000 G4 provides flexible system topology configuration options, including the ability to choose a single or dual root complex, making it ideal for deep learning requirements. The patented Adaptive Topology design enables users to switch the system topology easily via the intuitive web-based GUI of the ASUS ASMB9-iKVM server management solution, without changing any hardware configurations or cable routing. Scalable design for growing workloads ESC8000 G4 is designed for easy scalability to fit growing businesses and workloads. With eight PCIe Gen3 x16 slots that fit full-height, full-length GPU cards, two PCIe Gen3 x16 slots for high-speed networking cards, and one internal PCIe Gen3 x8 slot for an HBA/RAID card, ESC8000 G4 is ready to deliver high-density, parallel computing power. It also features multiple interface types for flexible storage configurations, including dual PCIe or SATA M.2, and port-to-port dual OCuLink with Intel VROC technology for two hot-swappable 2.5" NVMe SSDs. ESC8000 G4 also fits up to eight 2.5” SATA 6Gbp/s HDDs or eight 2.5” SAS 12Gbp/s HDDs with an optional HBA card. Comprehensive IT Infrastructure Management Solution ESC8000 G4 features an embedded iKVM module and is bundled with ASUS Control Centre software to provide comprehensive in-band and out-of-band management. Efficient cooling with hot-swappable redundant fans and dedicated air tunnels Cooling an accelerator server handling extreme workloads at up to 3200 Watts of power consumption is a demanding task, so ESC8000 G4 is equipped with hot-swappable, redundant fans and dedicated air tunnels for the CPU, GPUs and DIMMs. Ten fans for the GPUs — five primary and five back-up fans — plus two coolers for the CPU ensure nonstop cooling performance for nonstop server operation. * Default 5 fans for GPU, extra 5 fans are optional. Exclusive thermal radar technology for energy efficiency ESC8000 G4 features ASUS-exclusive thermal radar technology with ambient sensors placed on the CPUs, GPUs and DIMMs. This design provides internal and external temperature monitoring and enables dynamic fan curve adjustment, lowering fan power consumption up to 20% and reducing TCO which is ideal for extreme workload data centre. Easily Swappable Components With the ingenious placement design, IT staff can swap key components with ease. Tool-less Cover ESC8000 G4 has three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack. Front-bezel Q-Code ESC8000 G4 has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system. Quick initialisation guidance ESC8000 G4 provides instant system information during initialisation as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting. Supports 100Gbps Intel® Dual Embedded Omni-Path Architecture ESC8000 G4 supports two of the latest Intel® Xeon® Scalable Family processors, featuring up to total 56 cores and 112 threads for leading performance. The server also has 24 memory slots that fit up to 3TB of DDR4 2666 memory for intensive computing. With two Skylake-F CPUs, ESC8000 G4 supports optional dual Intel Omni-Path (OPA 100GbE) configurations for cluster management.
